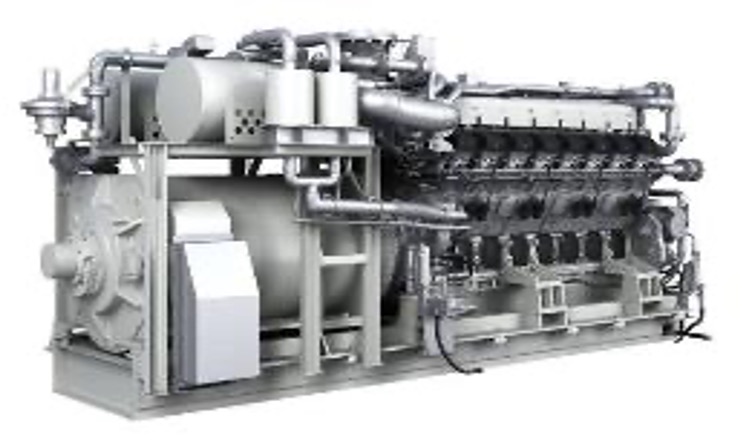

Gas Generator Sets (MGS-G)
Mitsubishi Gas Generator Sets, MGS-G series, are the one of the best solution to achieve low-carbonization.
Switching from diesel to gas enables the reduction of CO2 emission out of a generator by approximately 30%.
MHI group willing provide not only commodities but also engaging, sustainable support that last for a long term to achieve decarbonization.
Lineup
| Model | Unit | GS6R2-PTK | GS16R2-PTK | GS16R2-PTK |
|---|---|---|---|---|
| Output | kW | 500 | 1000 | 1500 |
| Revolution | min-1 | 1500 | 1000 | 1500 |
| Frequency | Hz | 50 | 50 | 50 |
| Voltage | V | 380 | 380 | 380 |
| Type | 4 cycle, water cooled, spark ignition pre-mixed fuel gas and air with exhaust turbine turbo charger and intake air cooler | |||
| Cylinder arrangement | In-line 6 cylinders | 60°Vee 16 cylinders | ||
| Bore x Stroke | mm | 170 x 220 | 170 x 220 | 170 x 220 |
| Length | mm | 4090 | 6027 | 6027 |
| Width | mm | 1814 | 2173 | 2173 |
| Height | mm | 2380 | 2472 | 2472 |
| Weight (Dry) | kg | 8000 | 16000 | 16000 |
