Moving Device for Solar Radiation Equipment
[ Special Systems ]
[ INDUSTRIAL MACHINERY ]

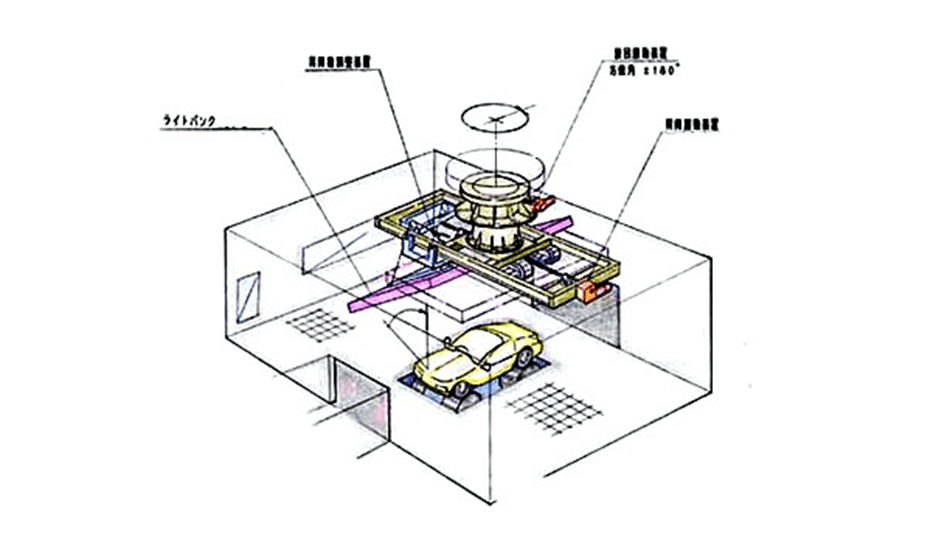

This system is broadly composed of hoist driving unit, hoist fine adjustment unit, and rotation driving unit.
Horizontal movement of the hoist driving unit allows the light bank an elevation angle, which is fine adjusted by the hoist fine adjustment unit. Furthermore the rotation driving unit rotates the whole system, allowing the light bank an azimuth angle.

Brief specifications

Slide horizontally to see the table.

Hoisting speed Approx.2.16m/min
Hoist fine control speed Approx.0.72m/min
Rotating range ±180°
Rotating speed 0.23rpm
