Type Indication
AMC-15A-O-41
Slide horizontally to see the table.
| Type | Fixed/variable | Volume of sweep (cm3/rev) |
Series code | attachment | Shaft forms |
|---|---|---|---|---|---|
| AM | C | -15 | A | -O | -41 |
| (AM) Mitsubishi AM motor | (C) Fixed motor | (12) 125 (15) 150 |
(A) A series | (0) Nil (M) Mechanical brake |
(11) Straight shaft with key (31) External spline shaft (41) Internal spline shaft |
Specification
Slide horizontally to see the table.
| Model | Displacement (cm3/rev) |
Pressure (MPa) |
Speed (min-1) |
Rated torque (kN/m) |
Rated Output (kW) |
Mass (kg) |
||
|---|---|---|---|---|---|---|---|---|
| Rated | Max | Rated | Max | Rated | ||||
| AMC-12A | 125 | 27.5 | 34.3 | 1,200 | 1,600 | 0.51 | 63 | 41 |
Performance Curve |
||||||||
Bearing Life |
||||||||
Self-priming performance |
||||||||
Unloaded pressure loss |
||||||||
Start-up characteristics |
||||||||
| Model | Displacement (cm3/rev) |
Pressure (MPa) |
Speed (min-1) |
Rated torque (kN/m) |
Rated Output (kW) |
Mass (kg) |
||
| Rated | Max | Rated | Max | Rated | ||||
| AMC-15A | 150 | 27.5 | 34.3 | 1,200 | 1,600 | 0.61 | 76 | 41 |

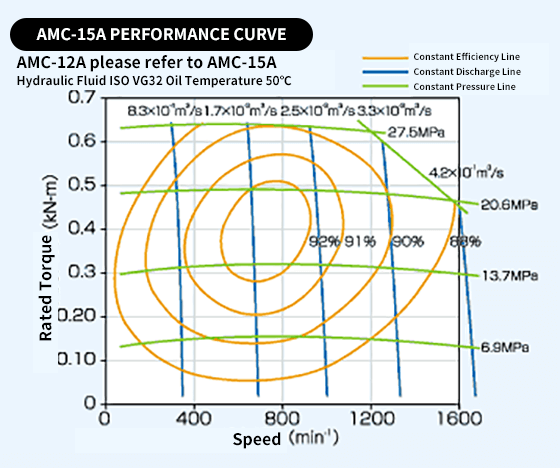

Performance Curve |
||||||||

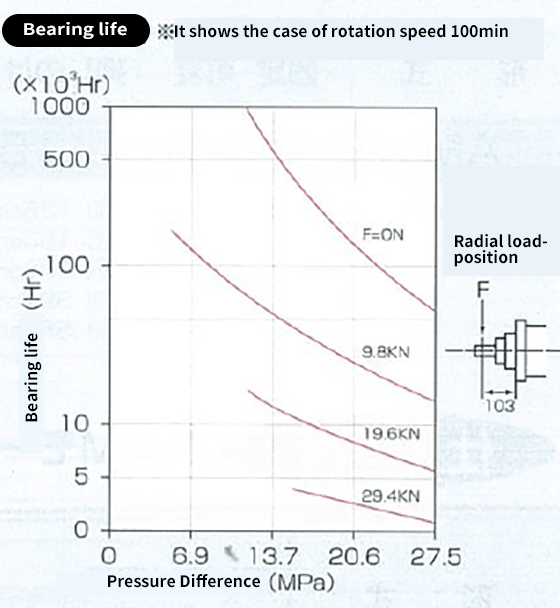

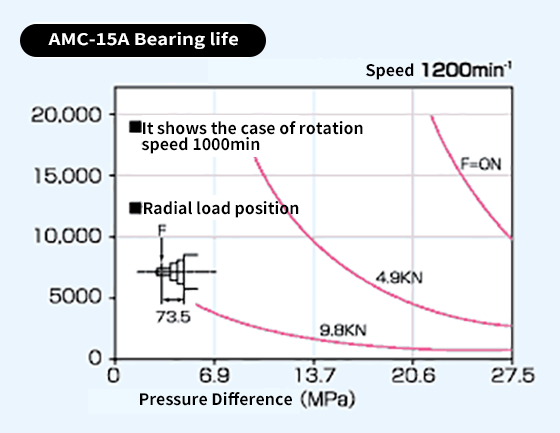

Bearing Life |
||||||||

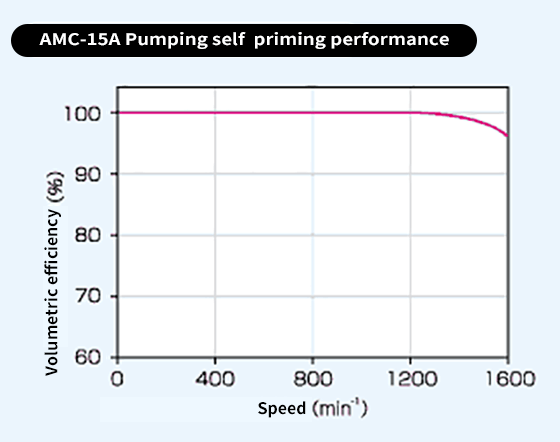

Self-priming performance |
||||||||

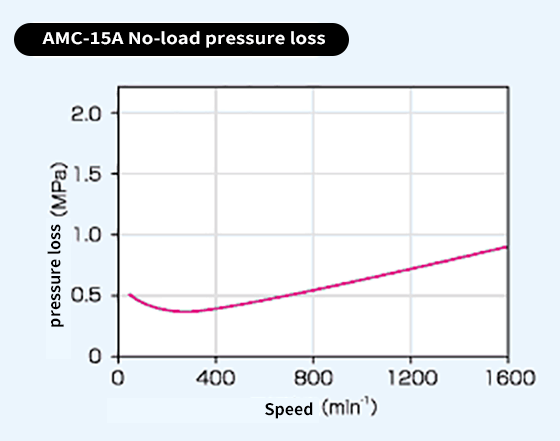

Unloaded pressure loss |
||||||||

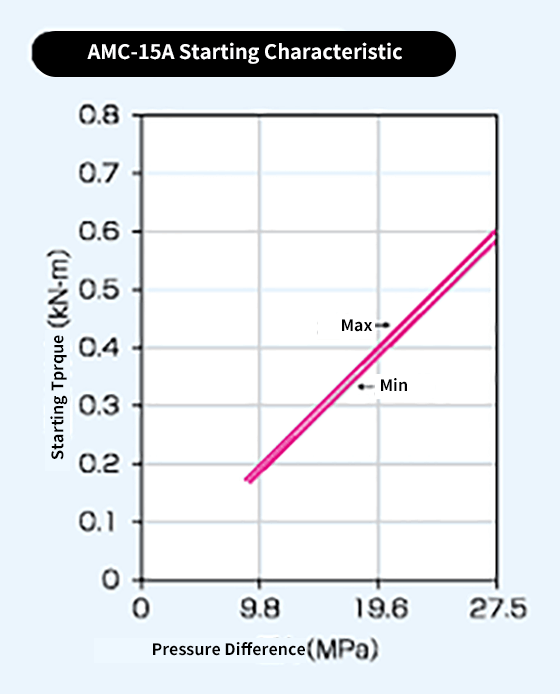

Start-up characteristics |
||||||||
| Model | Displacement (cm3/rev) |
Pressure (MPa) |
Speed (min-1) |
Rated torque (kN/m) |
Rated Output (kW) |
Mass (kg) |
||
| Rated | Max | Rated | Max | Rated | ||||
| AMC-30A | 300 | 27.5 | 34.3 | 1,000 | 1,200 | 1.22 | 127 | 77 |

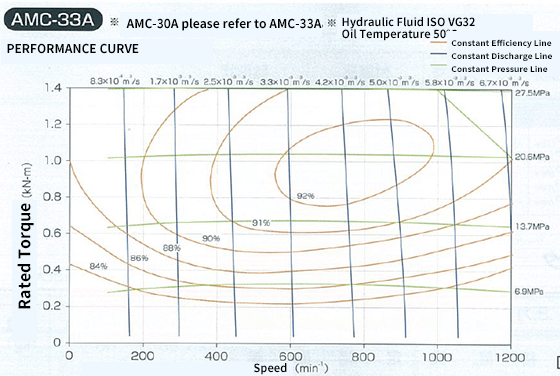

Performance Curve |
||||||||
Bearing Life |
||||||||

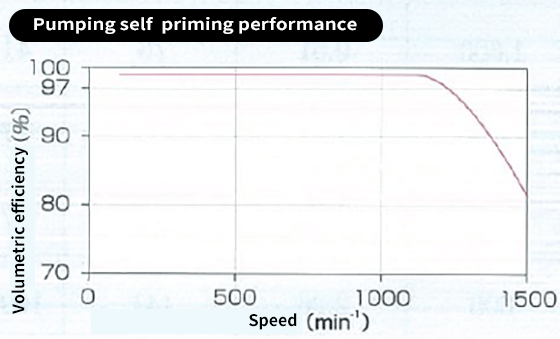

Self-priming performance |
||||||||

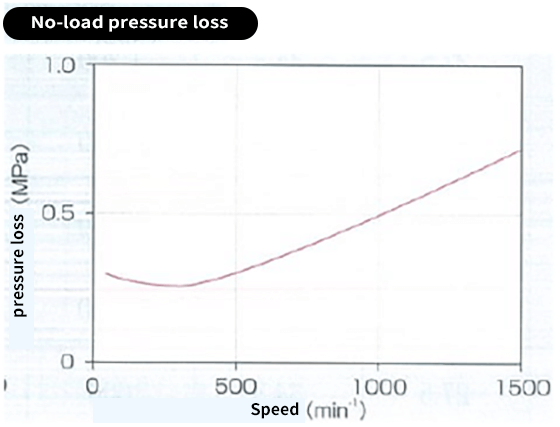

Unloaded pressure loss |
||||||||

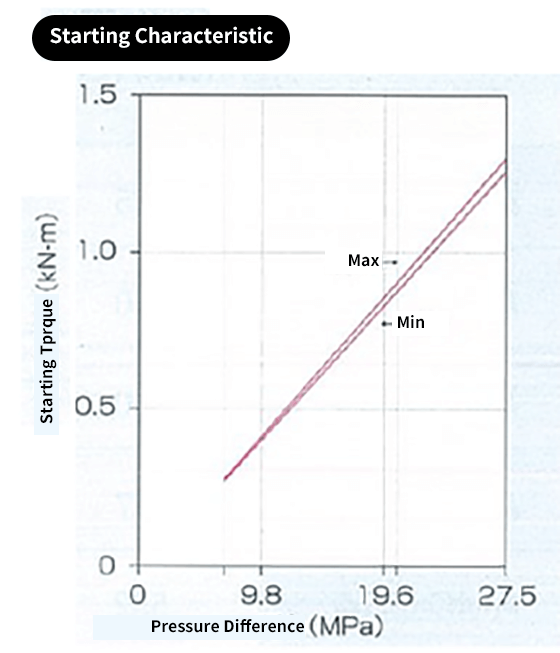

Start-up characteristics |
||||||||

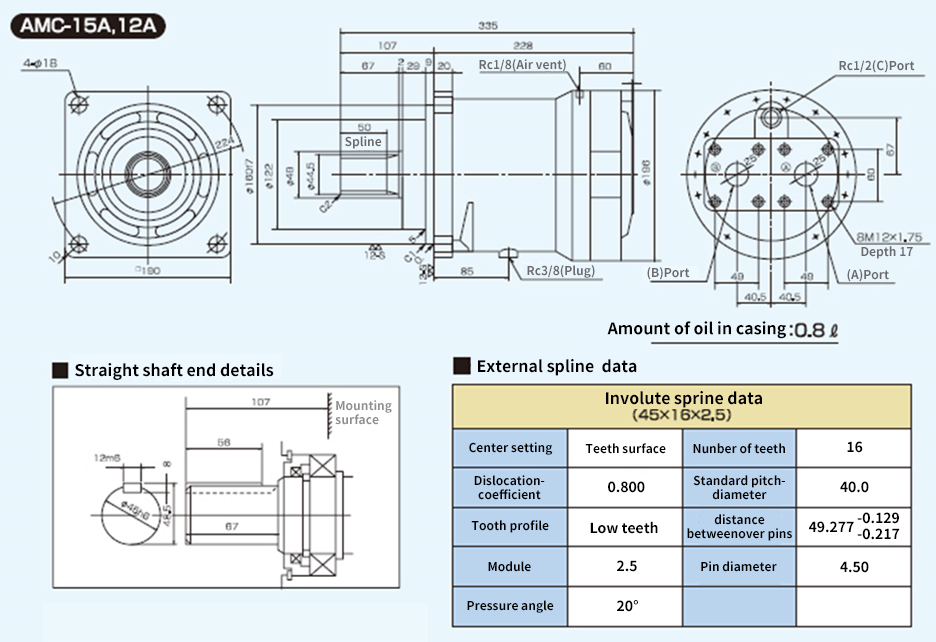

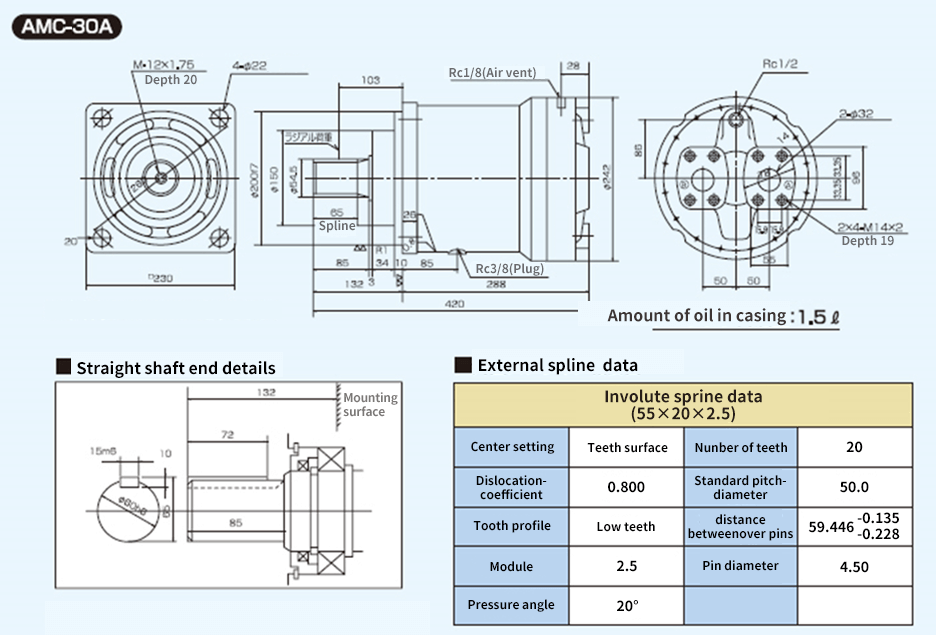

Dimensions
