Mitsubishi MK Pump:Controllers
[ Hydraulic Components ]
[ INDUSTRIAL MACHINERY ]

Slide horizontally to see the table.

Code Contoroller type Function description
C10 With external adjustment screw
Constant power control		 Constant power is approximated by a broken line using a self-pressure servo method.

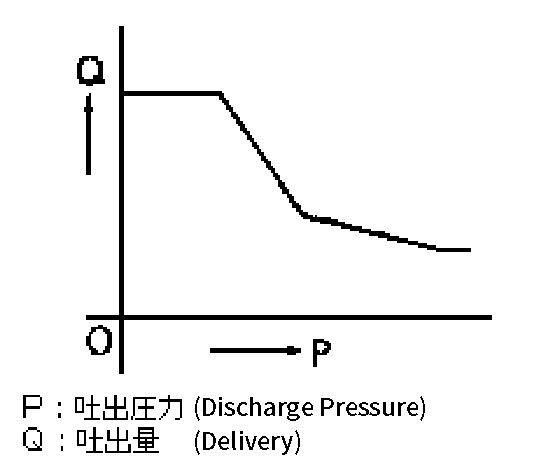

Characteristic curve Function
Diagram of C10 Characteristic Curve

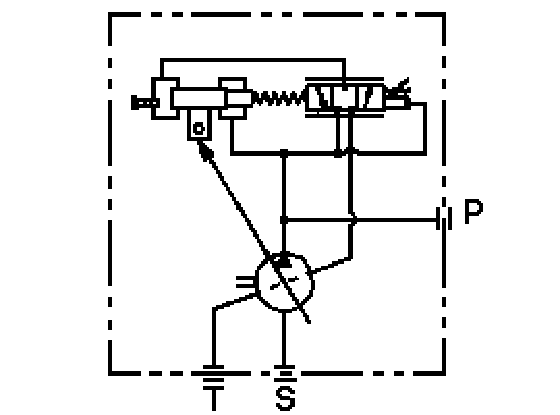

C10 Functional Diagram

Slide horizontally to see the table.

Code Contoroller type Function description
P11 With external adjustment screw
Constant pressure control		 Constant pressure is maintained at a set value by pressure control.
Characteristic curve Function
Diagram of P11 Characteristic Curve

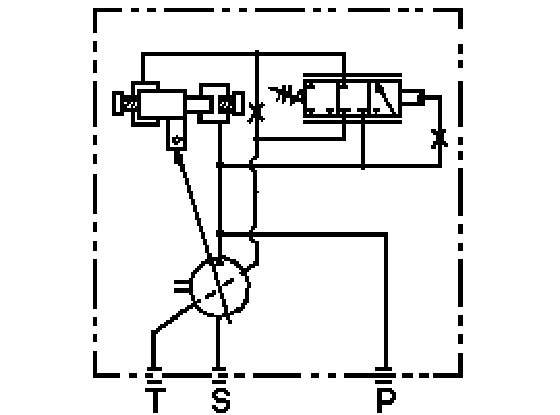

P11 Functional Diagram

Slide horizontally to see the table.

Code Contoroller type Function description
CG Negative
Flow control
Unfixed power control		 Controller “C10” with constant power control attached to the flow rate controller at pilot pressure.
  • External pilot hydraulic source P.P. required.
Characteristic curve Function

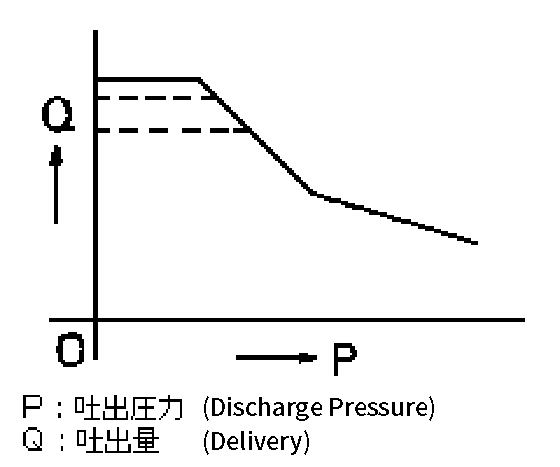

Diagram of CG Characteristic Curve

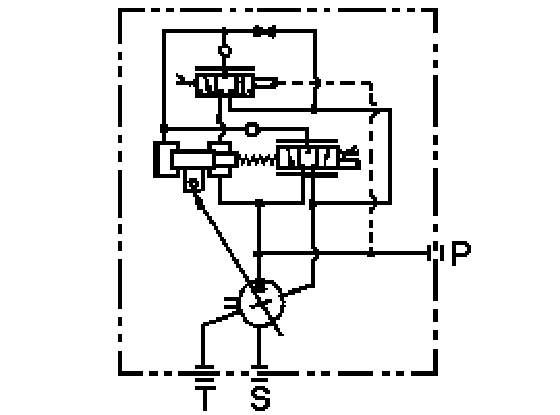

CG Functional Diagram

Slide horizontally to see the table.

Code Contoroller type Function description
CP Constant pressure control
Constant power control		 Controller “C10“ with a flow-rate-shutoff function at a set pressure
Characteristic curve Function

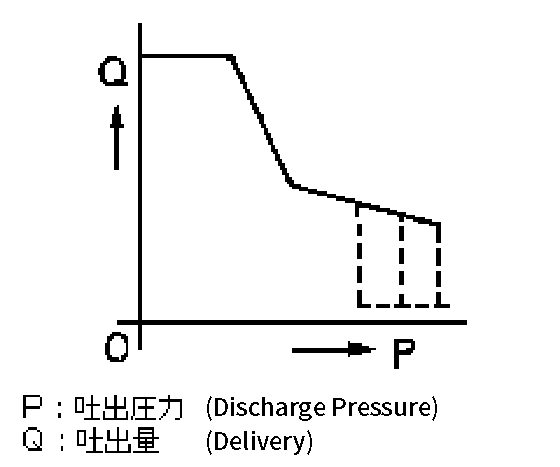

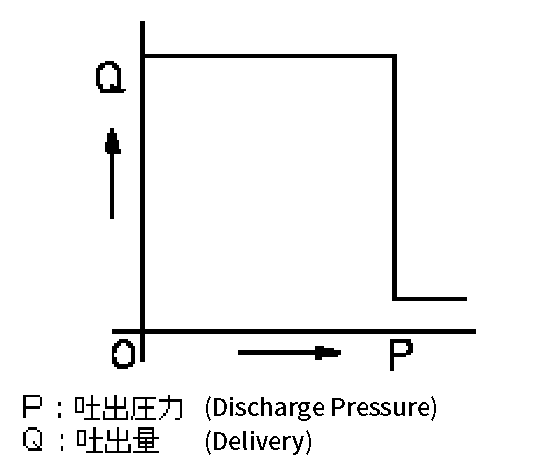

Diagram of CP Characteristic Curve

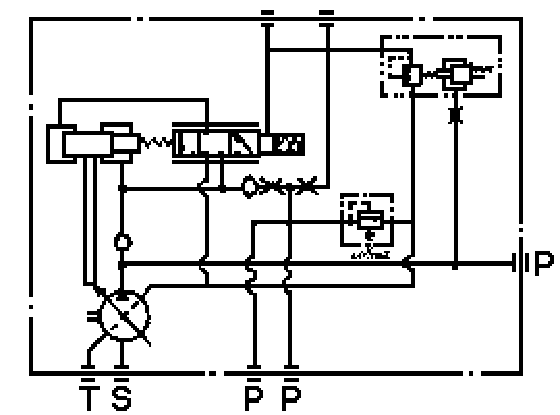

CP Functional Diagram

Slide horizontally to see the table.

Code Contoroller type Function description
D Hand wheel control Stroke control with a handle via a master screw mechanism
Characteristic curve Function

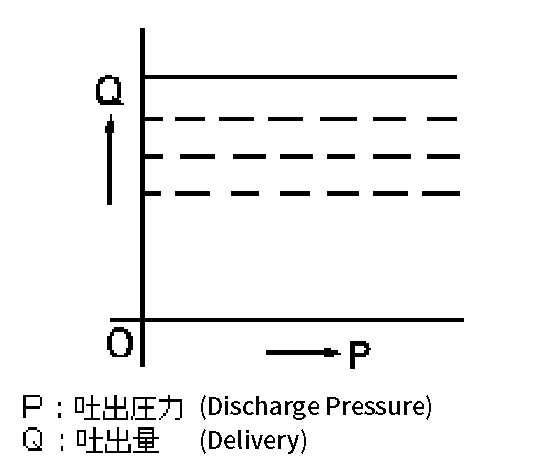

D Characteristic Curve

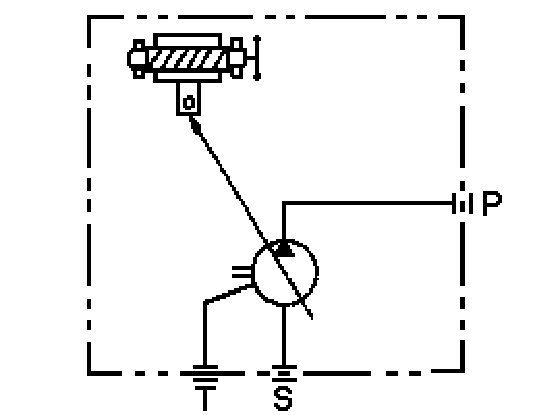

D Functional Diagram
