Deck Cranes
[ Marine Machinery ]
[ SHIP & OCEAN ]

MHI's deck cranes help you move your cargo onto ships faster and more accurately, improving the efficiency of your shipping operations.
MHI-MS's deck cranes apply proven technologies to deliver fast and accurate cargo handling, helping customers achieve cost-effective marine transportation.

Distributors :

SMART MODERNization by Mitsubishi

Mitsubishi Deck Crane & Deck Machinery achieve "high reliability" and "reduced life-cycle costs" with following three features:

  1. High reliability based on a “simple is best” design philosophy
  2. State-of-the-art technologies to back the development of related products and services
  3. Professional after-sales service.

Main Features

Highly reliable and safe
  • Braking system uses both mechanical and hydraulic blocking;
  • Simple, intuitive mechanicallink control system;
  • Good stability due to sheaves in the center of the jib.
Fast and efficient
  • Fast lowering speed is kept at highest speed for any load.
Easy maintenance
  • Simple hydraulic system;
  • The main equipment is found in a low accessible position of the crane's body;
  • Sheaves can be replaced easily due to separable bearing housing.
Easy access
  • Access design complies with AMSA regulation.
Access design complies with AMSA regulation.
Access design complies with AMSA regulation.

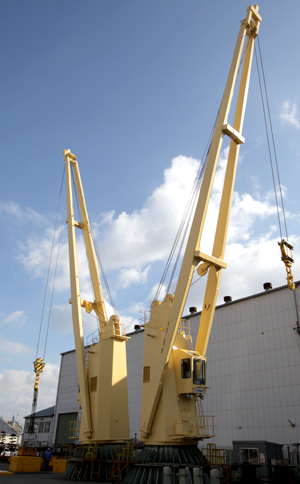

Deck Crane

S-SERIES

S-Series Deck Cranes are equipped with advanced data logging functions as the standard without sacrificing the simple configuration of equipment.
Designed around our Smart Up-Grade concept, the system automatically records operational status and supports a variety of upgrade menus to assist in maintenance and risk management. The cranes contribute to stable marine transportation by achieving both reduced lifecycle costs and increased functionality.

Line Up

We respond to the customer's needs with an abundant crane lineup ranging from the standard 30 tons class to a heavy duty type.

Standard Crane
Standard Crane
30 tons/36 tons/40 tons
Heavy duty Crane
Heavy duty Crane
50 tons/100 tons
Synchronized Crane
Synchronized Crane
50 tons ×3
Twin Crane
Twin Crane
60tons1(30tons×2)／
72tons(36tons×2)

Lineup and Specifications

Standard cranes

type 3020 3022 3024 3026 3026 3030
Hoisting load (t) 30
Working radius Max. (m) 20 22 24 26 28 30
Min. (m) 4 4 4.5 4.5 5 5
Winding height (m) 35
Hoisting Load (t) 30/12/5 *30/12/5
Speed (m/min.) 18.5/37/63 25/50/63
Lowering Load (t) 30/12/5 *30/12/5
Speed (m/min.) 63 63
Luffing time (sec.) 41 41 48 49 50 52
Slewing speed (rpm) 0.75 0.75 0.7 0.6 0.55 0.5
Electric motor for pump unit (kW) Cont. 105
*132
Intermittent 240/ED15% *320/ED15%
Total weight (t) 34 35 36 40 45 48
type 3620 3622 3624 3626 3628 3630
Hoisting load (t) 36
Working radius Max. (m) 20 22 24 26 28 30
Min. (m) 4 4 4.5 4.5 5 5
Winding height (m) 35
Hoisting Load (t) 36/14/5 *36/14/5
Speed (m/min.) 16/32/55 22/44/55
Lowering Load (t) 36/14/5 *36/14/5
Speed (m/min.) 55 55
Luffing time (sec.) 43 48 51 54 55 58
Slewing speed (rpm) 0.7 0.65 0.6 0.6 0.55 0.5
Electric motor for pump unit (kW) Cont. 105
*132
Intermittent 240/ED15% *320/ED15%
Total weight (t) 40 41 43 45 47 50
type 4020 4022 4024 4026 4028 4030
Hoisting load (t) 40
Working radius Max. (m) 20 22 24 26 28 30
Min. (m) 4 4 4.5 4.5 5 5
Winding height (m) 35
Hoisting Load (t) 40/16/5 *40/16/5
Speed (m/min.) 12.5/25/42 18.5/37/42
Lowering Load (t) 40/16/5 *40/16/5
Speed (m/min.) 42 42
Luffing time (sec.) 56 59 63 67 72 80
Slewing speed (rpm) 0.65 0.6 0.55 0.5 0.45 0.4
Electric motor for pump unit (kW) Cont. 105
*132
Intermittent 240/ED15% *320/ED15%
Total weight (t) 45 46 48 51 53 56
  • 1The data is based on an AC 440 V, 60 Hz, three-phase electric power source and a maximum 5° heel (list).
  • 2The speed in the above table is calculated based on a working oil viscosity of 55 cSt (oil temperature: approx. 40 to 50°C).
  • 3These figures are subject to change without notice.
  • 4*High Speed Type (Optional item)

Heavy duty cranes

type MD5028 MD5030 MD5032 MD10028 MD10030
Hoisting load (t) 50 100
Working radius Max. (m) 28 30 32 28 30
Min. (m) 5 5 5 6 6
Winding height (m) 35 35
Hoisting Load (t) 50/20/5 100/40
Speed (m/min.) 15/30/38 10/20
Lowering Load (t) 50/20/5 100/40
Speed (m/min.) 38 20
Luffing time (sec.) 95 100 100 135 145
Slewing speed (rpm) 0.4 0.35 0.35 0.2 0.2
Electric motor for pump unit (kW) Cont. 132 132 x 2
Intermittent 320/ED15% 320x2/ED15%
Total weight (t) 69 71 73 69 120
  • 1The data is based on an AC 440 V, 60 Hz, three-phase electric power source and a maximum 5° heel (list).
  • 2The speed in the above table is calculated based on a working oil viscosity of 55 cSt (oil temperature: approx. 40 to 50°C).
  • 3These figures are subject to change without notice.

History

History
S-SERIES CONNECTED

S-Series Connected Deck Cranes are equipped with a newly developed wireless data transfer system that transmits logging data to the bridge of the main ship.
The operational status, hydraulic pressure, and speed of all cranes can be centrally managed from the PC on the bridge, providing effective support for maintenance control. These features will further improve the stability of your operation.

Bridge PC login screen (example)
Bridge PC login screen (example)
Crane measurement records screen (example)
Crane measurement records screen (example)

S-Series Features

Equipped with Data Logging Function : Data Logging Standard "DLS"/ Data Logging Advanced "DLA"

The S-Series Deck Crane is equipped with a programmable logic controller (PLC) as a standard feature, which enables automatic recording of operation data, including handle operations, operation modes, limit actuation status, etc. to a general-purpose memory card (SD card). Furthermore, the data logging advance (DLA) option enables the recording of hydraulic pressure and operation speed, as well as periodic performance checks using self-diagnosis mode. DLA contributes to reduce life-cycle costs by enabling equipment condition monitoring and quick troubleshooting.
In addition, S-Series Connected automatically sends and records logging data on a PC on the bridge of the main ship, allowing the bridge to centrally manage the status of all cranes.

Operation Data from Data Logging (Example)
Operation Data from Data Logging (Example)
PLC adopted as standard
PLC adopted as standard

Smart Up-Grade : Ability to customize with a variety of upgrades

We offer a variety of upgrades, including a high durability menu to manage strict cargo handling requirements, a high functionality menu to support maintenance, and a modification menu for ships in service. We help to maximize the customers' profits by reducing non-operation risk and further streamlining maintenance by applying customizations optimally suited to the customer's needs.

smatUP
A wide array of items are provided, Including a load indicator (left) to confirm hoisting loads in real time within the cabin, a cabin monitoring camera (right) to check that the drivers operate cranes properly, etc.
A wide array of items are provided, Including a load indicator (left) to confirm hoisting loads in real time within the cabin, a cabin monitoring camera (right) to check that the drivers operate cranes properly, etc.

Table of Functions

Slide horizontally to see the table.

S-Series S-Series Connected
Data Logging Standard (DLS)
  • Can be upgraded to Advanced (DLA)
 Advanced (DLA)
Wireless Data Transfer System - ◯
UP-GRADE MENU Option Option

Full Customer Support

Genuine, high-quality wire rope and slewing bearings, etc. are offered at reasonable prices. We support stable service after inauguration while offering advice based on our years of experience.

Deck Machinery

Various types are provided in accordance with the hull forms. Our deck machinery has an established reputation based on over 50 years of performance results.

Mooring Winch
Mooring Winch
Rated Load: 100 to 250kN
Drum Diameter: 410 to 460 millimeter
Windlass
Windlass
Rated Load: 171 to 650kN
Chain Diameter: 60 to 117 millimeter

Hose Handling Crane

Our hydraulic technology and simple structure have gained high reliability.

Cylinder Type
Cylinder Type
10 tons/15 tons/20 tons

Overseas Licensee

Mitsubishi Heavy Industries licensed its deck crane technology to a Chinese company in 2008. The company launched supplying high-quality deck cranes to shipbuilding yards in China from 2009 under MHI's technical support. After that, MHI licensed its deck machinery and hose handling crane technology to expand its lineups. In addition, we began operating a new plant in 2020 to increase production capacity. With our state-of-the-art production facilities and quality control system, we are able to supply cranes of even higher quality and performance.

Slide horizontally to see the table.

Company Name of Licensee JIANGSU MASADA HEAVY INDUSTRIES CO., LTD
Product Range Deck Crane, Deck Machinery, Hose Handling Crane
Web http://www.masada.cn
Shop: Whole View
Shop: Whole View
