MATES Outfitting
Outfitting 3D-CAD: Consistent Design from Initial Layout Design to Production Design
All Sorts of 3D Outfitting Models
MATES provides special interface for outfitting layout design which is easy to create 3D outfitting models such as pipe, cable way, instrument, pipe support member, etc.
MATES offers wide variety of changing functions, such as automatic change function for piping root on outfitting layout change.
Large Variety of Quality Checking Functions
MATES contributes to improve productivity with a large variety of quality checking functions. These functions have been developed with design know-how.
For example, interference checking function can find interference portions which is taken account of clearance.
In addition, there are checking function of processing consistency whether or not pipes can be manufactured before releasing piping spool drawings.
Highly Accurate Production Information
MATES contributes to save production design time and highly accurate constructions by high precision output of production information.
MATES can create installation drawing with automatically adding attribute data such as product number etc., dimension line, and inclined mark. In addition, MATES can decrease design time because necessary information on manufacturing pipe are output without any modifications.
[ Pipe Spool Drawing ]
[ Production Drawing of Support ]
[ Installation Drawing ]
- Cooperation with MATES Hull
- 3D hull model that is created on MATES Hull can be used as background model of MATES outfitting model. Holes that are cut on hull for piercing pipes are created automatically and by transmitting holes information to MATES Hull, MATES can prevent to error of cutting holes.
- Customizing for Your Needs
- MATES's customer service offers system customization for customer's needs.
If there is anything we can help with, please don't hesitate to contact us.
System Requirements for MATES
Server
| item | Recommended | |
|---|---|---|
| OS Performance | PC/AT(DOS/V)Compatible Computer | |
| OS | Windows 2012 Server R2 | |
| CPU | Intel Xeon CPU E5620 2.4GHz | |
| Memory | 16GB | |
| Resolution | Unspecified * In case that server used both as client, follow system specifications of client | |
| V-RAM | Unspecified * In case that server used both as client, follow system specifications of client | |
| Free disk space | 500GB | |
| Peripheral hardware | Graphics board | Unspecified * In case that server used both as client, follow system specifications of client |
| Network | 1000BASE-T | |
| Peripheral software | Editor | Necessary to prepare some editors *Windows Notepad can be used as an editor. |
| Others | Resolution of monitor | Unspecified * In case that server used both as client, follow system specifications of client |
| Backup tool | Some backup tools | |
- 1Recommend to use server computer as dedicated server computer, not to use both as client.
- 2In case use dedicated server computer, not necessary to specify graphic board and resolution of monitor.
- 3In case that chose Windows 10 Professional as OS of server computer, limit of concurrent accessing to server is 10 clients.
Client
| item | recommended | |
|---|---|---|
| OS Performance | PC/AT(DOS/V)Compatible Computer | |
| OS | Windows10(64bit) Enterprise, Professional | |
| CPU | Intel Core i7 3.4GHz | |
| Memory | 16GB | |
| Resolution | 16 million colors(1,280X1024) | |
| V-RAM | 512MB | |
| Free disk space | 200GB | |
| Peripheral hardware | Graphics board | NVIDIA GeForce or Quadro Series (Support OpenGL) |
| Network | 1000BASE-T | |
| Peripheral software | Editor | Necessary to prepare some editors *Windows Notepad can be used as an editor. |
| Runtime | Visual C++ Redistributable Packages for Visual Studio 2013 (Only for MATES Outfitting) | |
| Office | 32bit Microsoft Excel 2010/2013/2016 (Only for MATES Outfitting) | |
| Others | Resolution of monitor | 1280 X 1024 |
- 1Supported OS version is only 64bit Windows10. Operation of other OS version such as XP, Vista, 7, and 8 is not guaranteed.
Supported editions for Windows 10 are Enterprise and Professional, operation of Windows 10 Home is not guaranteed. - 2In case use OS for 64bit, use Microsoft Office, especially Excel, for 64bit. Cause of malfunction especially Macro in Excel for 64bit.
Reference URL：Office 2013 for 64bit
https://technet.microsoft.com/ja-jp/library/ee681792.aspx - 3Use NVIDIA Quadro or GeForce series from points of performance, availability and introduced many times as graphic board for MATES
MATES Hull
Hull 3D-CAD: Consistent design from basic design to production design
3D Modeling as if Design 2D Hull Plan
3D models are created automatically by adding attribute data such as thickness, size of longitudinal to 2D figures, so it is possible to create 3D models without skills of operating 3D-CAD.
Furthermore, MATES saves design time by using copy function of similar transverse sections and a variety of simplified input functions.
Large Variety of Quality Checking Functions
MATES contributes to improve productivity with a large variety of quality checking functions. These functions have been developed with our know-how of ship design.
For example, checking function of design consistency, interference checking function hull and outfitting, checking function of water leaks in water-tight section, etc.
Highly Accurate Production Information
MATES's highly accurate production information offer highly accurate constructions by reducing frequency of reworking at construction yard.
Even unskilled designers of lofted drawing can provide highly accurate production information to production yard, if they use MATES.
MATES can output a wide variety of production information that are data for NC cutting machine, all sorts of bill of materials, draught marks, paint indicating data, weight information, welding length, etc.
[ Curved Parts Data ]
[ Angle Section Drawing ]
[ Small Piece Drawing ]
[ Shell Pin Jig ]
[ Shell Pin Jig Offset Drawing ]
- Customizing for Your Needs
- MATES's customer service offers system customization for customer's needs.
We can support not only outputting NC cutting data but also installing a cutting machine of shaped steel and welding robot. We support factory automation.
System Requirements for MATES
Server
| item | Recommended | |
|---|---|---|
| OS Performance | PC/AT(DOS/V)Compatible Computer | |
| OS | Windows 2012 Server R2 | |
| CPU | Intel Xeon CPU E5620 2.4GHz | |
| Memory | 16GB | |
| Resolution | Unspecified * In case that server used both as client, follow system specifications of client | |
| V-RAM | Unspecified * In case that server used both as client, follow system specifications of client | |
| Free disk space | 500GB | |
| Peripheral hardware | Graphics board | Unspecified * In case that server used both as client, follow system specifications of client |
| Network | 1000BASE-T | |
| Peripheral software | Editor | Necessary to prepare some editors *Windows Notepad can be used as an editor. |
| Others | Resolution of monitor | Unspecified * In case that server used both as client, follow system specifications of client |
| Backup tool | Some backup tools | |
- 1Recommend to use server computer as dedicated server computer, not to use both as client.
- 2In case use dedicated server computer, not necessary to specify graphic board and resolution of monitor.
- 3In case that chose Windows 10 Professional as OS of server computer, limit of concurrent accessing to server is 10 clients.
Client
| item | recommended | |
|---|---|---|
| OS Performance | PC/AT(DOS/V)Compatible Computer | |
| OS | Windows10(64bit) Enterprise, Professional | |
| CPU | Intel Core i7 3.4GHz | |
| Memory | 16GB | |
| Resolution | 16 million colors(1,280X1024) | |
| V-RAM | 512MB | |
| Free disk space | 200GB | |
| Peripheral hardware | Graphics board | NVIDIA GeForce or Quadro Series (Support OpenGL) |
| Network | 1000BASE-T | |
| Peripheral software | Editor | Necessary to prepare some editors *Windows Notepad can be used as an editor. |
| Runtime | Visual C++ Redistributable Packages for Visual Studio 2013 (Only for MATES Outfitting) | |
| Office | 32bit Microsoft Excel 2010/2013/2016 (Only for MATES Outfitting) | |
| Others | Resolution of monitor | 1280 X 1024 |
- 1Supported OS version is only 64bit Windows10. Operation of other OS version such as XP, Vista, 7, and 8 is not guaranteed.
Supported editions for Windows 10 are Enterprise and Professional, operation of Windows 10 Home is not guaranteed. - 2In case use OS for 64bit, use Microsoft Office, especially Excel, for 64bit. Cause of malfunction especially Macro in Excel for 64bit.
Reference URL：Office 2013 for 64bit
https://technet.microsoft.com/ja-jp/library/ee681792.aspx - 3Use NVIDIA Quadro or GeForce series from points of performance, availability and introduced many times as graphic board for MATES
3D-Viewer HullViewer/FitViewer
3D-Viewer: High-performance 3D-Viewer to support construction process of shipbuilding
- HullViewer/FitViewer is dedicated 3D-Viewer for shipbuilding and it has light 3D display and great usability.
- 3D Viewer is much more intuitive than a 2D drawing, so it is easy for users to imagine complete shape and intermediate product. Therefore, HullViewer/FitViewer can be used in many situations such as design review and installation work during construction, the design work and prior examination, construction and inspection stage in a shipyard. Also, HullViewer/FitViewer can be used as a communication tools with your customers.
- HullViewer/FitViewer has VR function and can be switched to VR mode easily. In virtual reality world with overflowing presence, experiencing product before manufacturing improves perfection of product.
- Necessary VR headset and computer with graphics board specialized for VR
The following video shows the main features of 3D-Viewer HullViewer/FitViewer.
- Language can be switched between Japanese and English. Default language of this video is English.
- AR/MR function is under development.

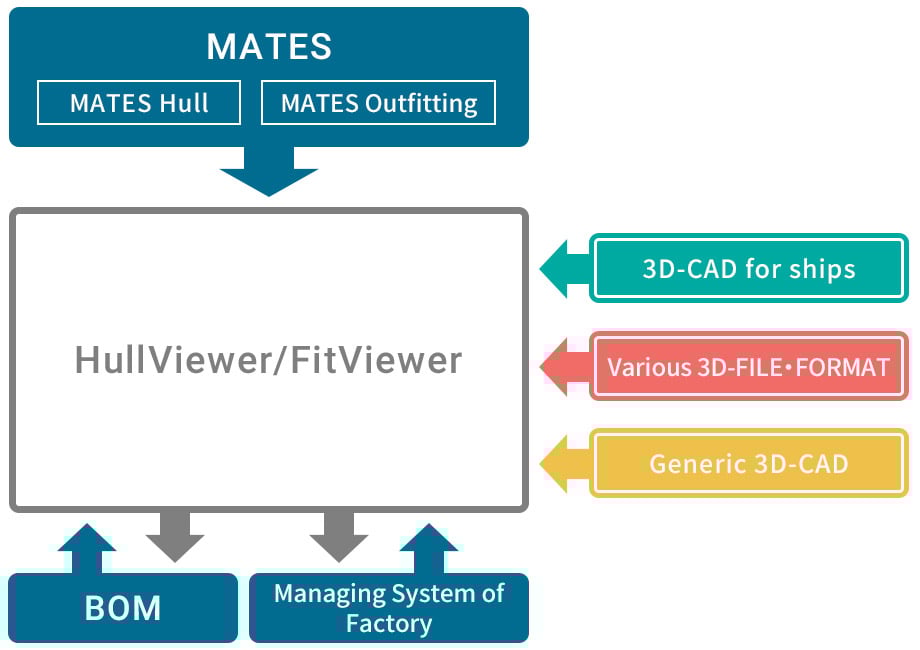

- By special customizing, 3D models can be linked managing system of factory and BOM. HullViewer/FitViewer can make various ideas come true.
- HullViewer/FitViewer can also be applied to another 3D-CAD for ships,various 3D file formats and generic 3D-CAD data.
Please don't hesitate to contact us for available data format.
System Requirements for HullViewer FitViewer
| item | Recommended | |
|---|---|---|
| OS Performance | PC/AT(DOS/V)Compatible Computer | |
| OS | Windows10(64bit) Enterprise, Professional | |
| CPU | Intel Core i5 2GHz | |
| Memory | 8GB | |
| Resolution | 16 million colors(1,280X1024) | |
| Free disk space | 200GB | |
| Peripheral software | Network | 1000BASE-T |
| Others | Resolution of monitor | 1280 X 1024 |
- Supported OS version is only 64bit Windows10. Operation of other OS version such as XP, Vista, 7, and 8 is not guaranteed.
Supported editions for Windows 10 are Enterprise and Professional, operation of Windows 10 Home is not guaranteed.
