Engine Valve Control System
[ Testing Equipment ]
[ INDUSTRIAL MACHINERY ]

Develop Next-Generation Engine

Outline of Product

High-Speed Valve Lift Control

This engine development tool enables high-speed valve lift control by adopting a highly responsive hydraulic actuator.

Feature

Contributes to the Development of Advanced Engines
Capable of developing advanced engines with features such as variable valve lift timing, combined cycle (proper use in multi-cycle load ranges such as HCCI, etc.), a next-generation valve drive system, etc.
Improves the Level of Optimization
Multiple engines can be operated by changing the valve lift patterns in the same setup to enable optimization development within short periods for small budgets.
Shortens Development Periods
The cost and period for trial manufacturing are significantly reduced by eliminating the need to change the cam setup.

Application Items

  • Diesel engine (single cylinder, multi-cylinder)
  • Gasoline engine

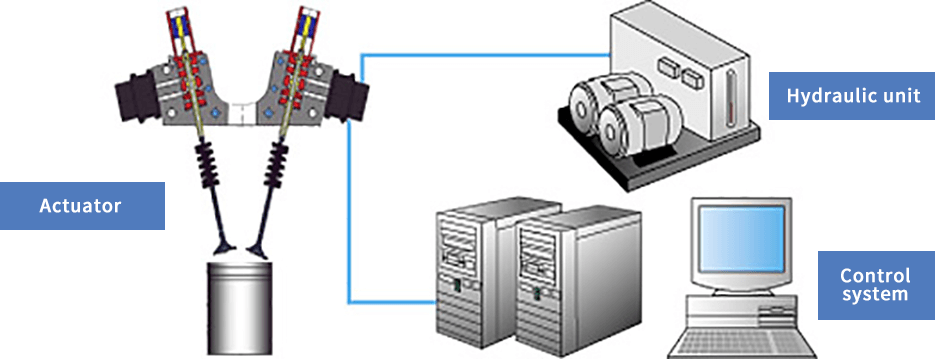

System Image

System Image

Technology

Examples of System Specifications

Slide horizontally to see the table.

Example 1

Slide horizontally to see the table.

Target engine 4-valve single cylinder diesel engine
Corresponding maximum rotating speed Engine rotation speed: 1,800 rpm
Maximum lift 18mmP-P
Valve lift precision ±0.1mm (Note)

Example 2

Slide horizontally to see the table.

Target engine 4-valve single cylinder gasoline engine
Corresponding maximum rotating speed Engine rotation speed: 6,000 rpm
Maximum lift 18mmP-P
Valve lift precision ±0.1mm (Note)
  • Precision varies with load conditions.

Example of a Data Waveform (at 1,800 rotations per minute)

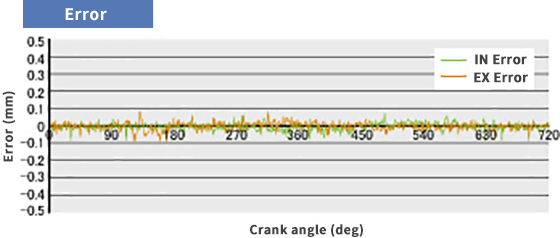

Example of a Data Waveform

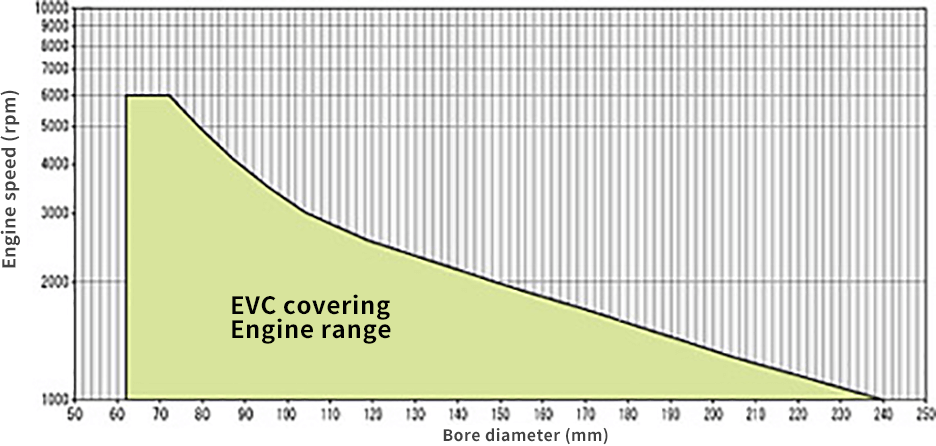

Bore diameter and Engine speed of object Engine

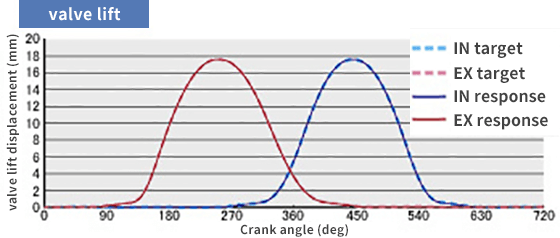

Example of a Data Waveform
