Supersonic Variable Nozzle
[ Testing Equipment ]
[ INDUSTRIAL MACHINERY ]

Supersonic nozzle with highly accurate knob-adjustment (variability) by the multi-jack method.

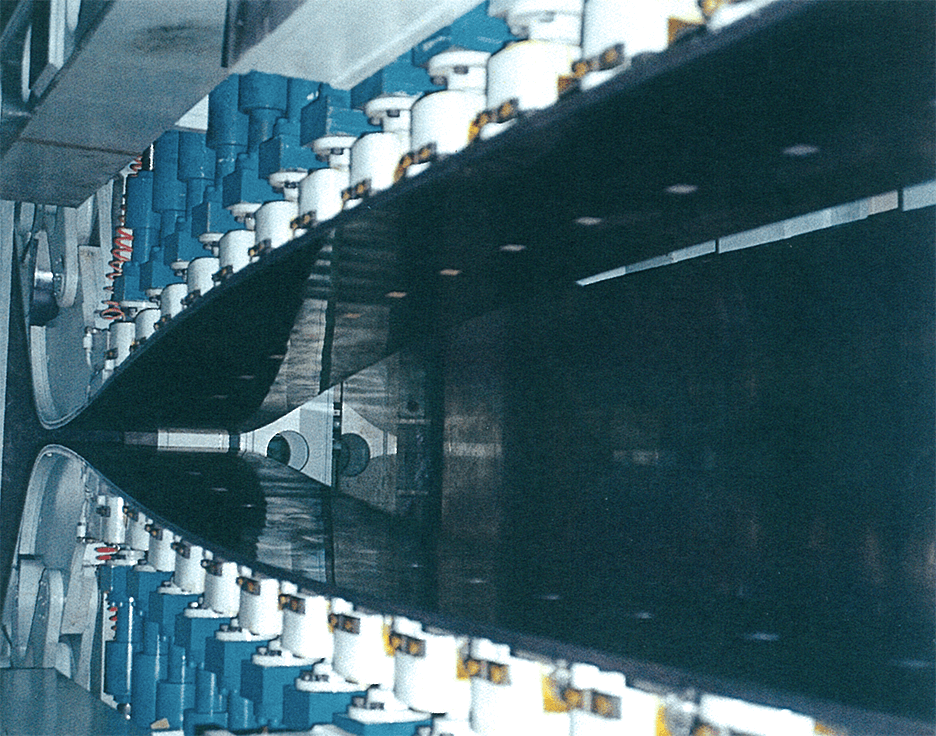

Flexible nozzles with multi jack system

Specification

Slide horizontally to see the table.

Type Variable type
Test section 600×600mm
Mach number 1.5 to 4.0
