High-Speed Travel Simulations for Railway Bogie

Outline of Product

Reproduction of Various Traveling Conditions

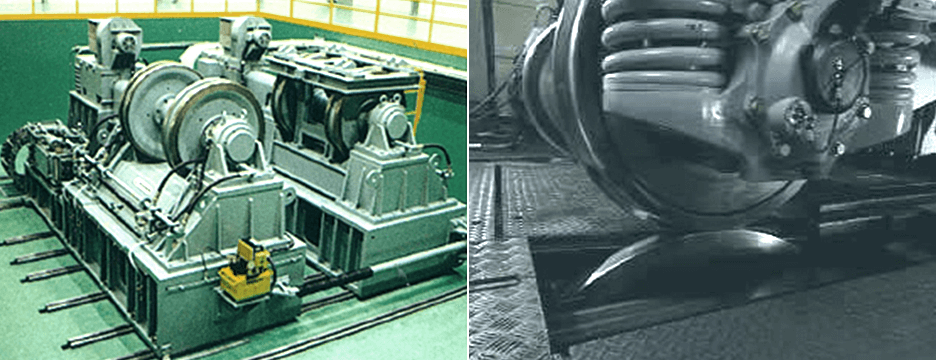

Traveling test equipment developed for high-speed traveling simulations testing for railway bogie. The system tests to confirm the traveling stability and to collect vibration data, noise data, etc. during high-speed travel -data that previously could be only obtained through actual travel. The tests are conducted to achieve “Faster, Quieter, and More Comfortable” bogie

Technology

Slide horizontally to see the table.

Quantity of specimens Per bogie
Maximum axle load 20tons
Maximum bogie speed 500km/h
Distance between rails 1067,435mm
Wheelbase 1,500 to 3,000mm
Acceleration 1.0km/h (Wagon speed of 300 km or more)
0.5km/h (Wagon speed of less than 300 km)
