Magnetic Field Measurement System
Magnetic Field Measurement System
![](/sites/g/files/jwhtju111/files/styles/original_image_style/public/2021-12/testequipment_inspectionequip.png?itok=m7LN3eOk)

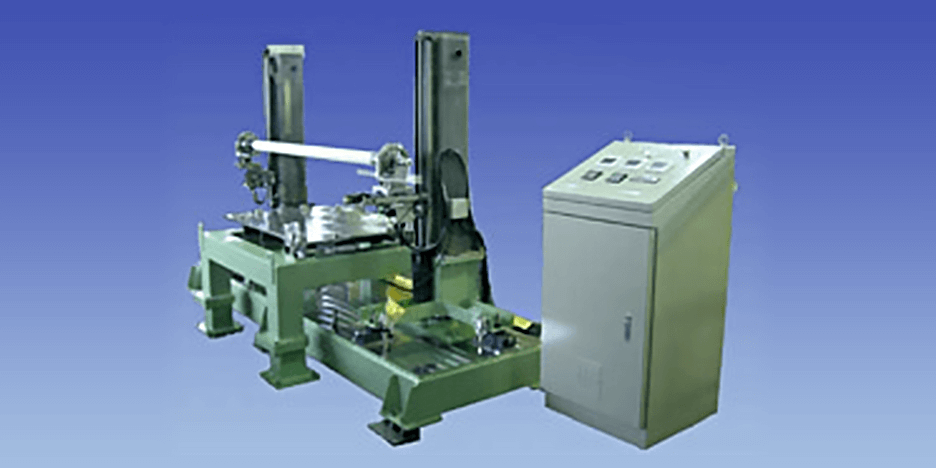

This system is designed to measure with high accuracy the properties of magnetic field of the quadrupole electromagnets used for beam convergence.
Distributors :
Brief specifications
Slide horizontally to see the table.
Search coil | |
---|---|
Material | Ceramic |
Number of revolution | 480rpm |
Positioning accuracy | 0.088° |
Slide horizontally to see the table.
Hoist shaft | Sliding shaft | |
---|---|---|
Drive | 5-phased stepping motor × 2 units | 5-phased stepping motor × 2 units |
Speed | 10mm/sec | 10mm/sec |
Positioning accuracy | 0.01mm or less | 0.01mm or less |
Slide horizontally to see the table.
Attachments | Control panel and Trestle for electromagnets |
---|
